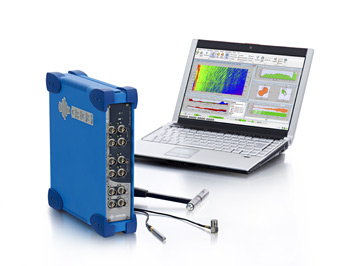

  [OROS] OR35 Intergrated Analyzer

  모델명 : OR35



Overview

With up to 8 dynamic inputs, shouldered by 4 parametric ones, 2 tachometer and 2 generator channels, OR35 makes noise and vibration measurements faster and easier than ever.

OROS puts its wealth of experience designing analyzers for the field into this mobile, powerful and complete unit.

Main Features

  • Easy to carry (2.8 kg/6.2 lbs)
  • Internal battery (1h30)
  • 2 triggers/tachometers inputs
  • 2 independent generator outputs
  • 4 parametric inputs (10S/s)
  • 1 or 2 computaion DSPs
  • ± 10V Inputs, 24 bits, ICP®
  • AC/DC power supply

Portable Real-time Analyzer

OR35 is the synthesis of the ultimate 3-Series technology and OROS’ wealth of experience of measurement. Designed to be the best for field operations, OR35 takes any measurement situation in its stride. It is so easy to carry this instrument that you will take it everywhere without hesitation: choose OR35 and go on confidently!
OR35 is the lightest 8 channel multi-analyzer available. Discover the OR35 real mobility and be comfortable for carrying it along with your laptop, for intensive use, with all you need close at hand. Its exceptional robustness ensures to succeed in any environment. It is so easy to carry this instrument that you will take it everywhere without hesitation!

Big in perfomances, small in size

Rotating machineries, diagnostics, synchronous time averaging all these are simple to handle with the integrated triggers/tachometers. The 2 high quality generators open your capabilities to shaker structure excitation such as swept sine. OR35 DSPs horse-power eliminates the real-time limitations. This dynamic signal analyzer is able to process all channels real-time, whatever the analysis mode, up to 20 kHz.

OROS Instruments
Made for the Field, Flexible, Accurate
