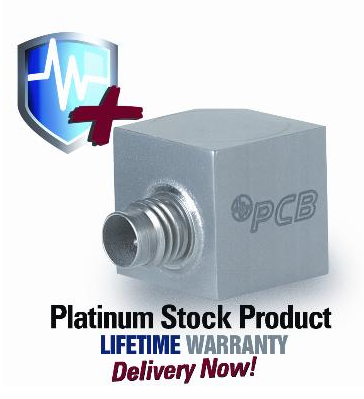

  [Sound Solution] Triaxial Accelerometer

  모델명 : 356A02...


제조사 : PCB
모델 : 356A02...

Mouse Over Image for Product Description.
Model Number 356A02 356A16 356A17 356A25 356A26
Add To Cart Add To Cart Add To Cart Add To Cart Add To Cart
Price: Add to Cart for Quote Add to Cart for Quote Add to Cart for Quote Add to Cart for Quote Add to Cart for Quote
Performance
Sensitivity (±10%)
10 mV/g
100 mV/g
500 mV/g
25 mV/g
50 mV/g
Measurement Range
±500 g pk
±50 g pk
±10 g pk
±200 g pk
±100 g pk
Frequency Range (±5%) 1-5000 Hz 0.5-5000 Hz 0.5-3000 Hz 1-5000 Hz 1-5000 Hz
Frequency Range (±10%) 0.5-6000 Hz -- 0.4-4000 Hz 0.5-6500 Hz 0.7-6500 Hz
-- -- -- -- --
Resonant Frequency >=25 kHz >=25 kHz >=14 kHz >=25 kHz >=25 kHz
Phase Response (±5°) -- 1.0-5000 Hz 2-4000 Hz -- --
Broadband Resolution
0.0005 g rms
0.0001 g rms
0.00006 g rms
0.0002 g rms
0.0002 g rms
Non-Linearity -- <=1 % <=1 % <=1 % <=1 %
Non-Linearity (400 g, 3920 m/s²) <=1 % -- -- -- --
Non-Linearity (500 g, 4900 m/s²) <=2 % -- -- -- --
Transverse Sensitivity <=5 % <=5 % <=5 % <=5 % <=5 %
Environmental
Overload Limit (Shock)
±7000 g pk
±7000 g pk
±5000 g pk
±7000 g pk
±7000 g pk
Temperature Range (Operating)
-65-+250 °F
-65-+176 °F
-65-+176 °F
-65-+250 °F
-65-+250 °F
Base Strain Sensitivity
0.001 g/µε
0.001 g/µε
0.001 g/µε
0.001 g/µε
0.001 g/µε
Electrical
Excitation Voltage 20-30 VDC 20-30 VDC 18-30 VDC 20-30 VDC 24-30 VDC
Constant Current Excitation 2-20 mA 2-20 mA 2-20 mA 2-20 mA 2-20 mA
Output Impedance <=200 Ohm <=200 Ohm <=300 Ohm <=100 Ohm <=100 Ohm
Output Bias Voltage 8-12 VDC 8-12 VDC 8-12 VDC 8-12 VDC 8-12 VDC
Discharge Time Constant 0.6-2.0 sec 1.0-3.0 sec 0.8-2.0 sec 0.5-2.0 sec 0.4-1.0 sec
Settling Time (within 10% of bias) <5 sec <10 sec <10 sec <5 sec <3 sec
Spectral Noise (1Hz)
150 µg/√Hz
40 µg/√Hz
18 µg/√Hz
70 µg/√Hz
75 µg/√Hz
Spectral Noise (10Hz)
25 µg/√Hz
10 µg/√Hz
6 µg/√Hz
15 µg/√Hz
15 µg/√Hz
Spectral Noise (100Hz)
10 µg/√Hz
3 µg/√Hz
2 µg/√Hz
5 µg/√Hz
4 µg/√Hz
Spectral Noise (1kHz)
5 µg/√Hz
1 µg/√Hz
0.7 µg/√Hz
3 µg/√Hz
2 µg/√Hz
Spectral Noise (10kHz) --
0.5 µg/√Hz
0.2 µg/√Hz
2 µg/√Hz
1 µg/√Hz
Physical
Sensing Element Ceramic Ceramic Ceramic Ceramic Ceramic
Sensing Geometry Shear Shear Shear Shear Shear
Housing Material Titanium Anodized Aluminum Anodized Aluminum Titanium Titanium
Sealing Hermetic Epoxy Epoxy Hermetic Hermetic
Size - Height
0.55 in
0.55 in
0.55 in
0.55 in
0.55 in
Size - Length
0.80 in
0.80 in
0.80 in
0.80 in
0.80 in
Size - Width
0.55 in
0.55 in
0.55 in
0.55 in
0.55 in
Weight
0.37 oz
0.26 oz
0.33 oz
0.37 oz
0.37 oz
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin 1/4-28 4-Pin 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side Side Side Side
Mounting Thread 10-32 Female 10-32 Female 5-40 Female 10-32 Female 10-32 Female
Mounting Torque
10-20 in-lb
10-20 in-lb
--
10-20
10-20 in-lb
Supplied Accessories
Petro Wax 080A109 080A109 080A109 080A109 080A109
Adhesive Mounting Base 080A12 080A12 080A145 080A12 080A12
Mounting Stud (10-32 to 10-32) 081B05 081B05 -- 081B05 081B05
NIST traceable triaxial amplitude response, 10 Hz to upper 5% frequency. ACS-1T ACS-1T ACS-1T ACS-1T ACS-1T
Mounting Stud 10-32 to M6 X 0.75 M081B05 M081B05 -- M081B05 M081B05
Mounting Stud (5-40 to 5-40) -- -- 081A27 -- --
Metric mounting stud, 5-40 to M3 x 0.50 long -- -- M081A27 -- --
Quick Bonding Gel 080A90 -- -- -- 080A90

Total 16
