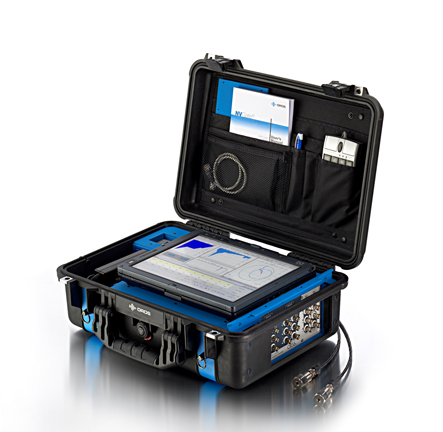

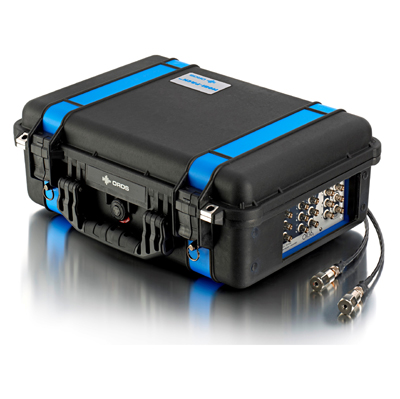

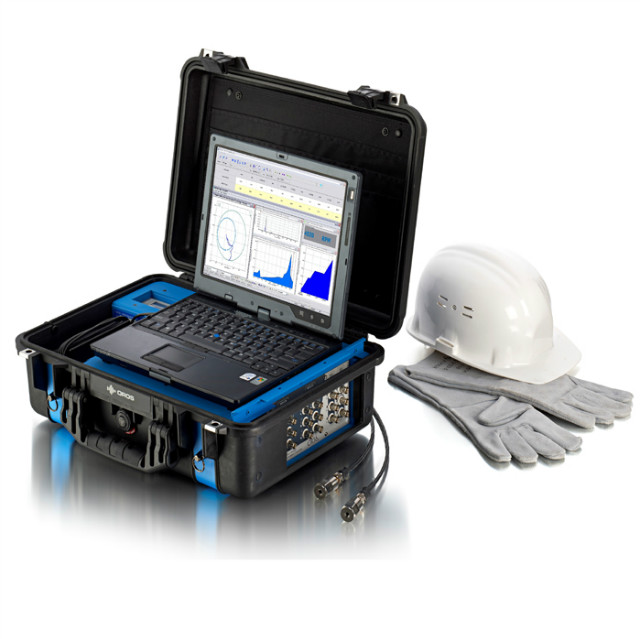

  [OROS] Mobi-Pack 4 to 16 channel

  모델명 : Mobi-Pack






Main Features

  1. All-In-One analyzer, 4 to 16 channels
  2. Portable
  3. Field Testing: Rugged, Rough, Reliable
  4. Up to 40 kHz and 25.6 kHz bandwidths
  5. PC Based, 100 Mbits/s Ethernet Connection
  6. Touch and measure: Tablet Operation
  7. 4, 8, 12 or 16 universal inputs
    1. ± 40 V range, 24 bits
    2. Dynamic: AC/DC/ICP®/Float/TEDS
    3. Parametric: 10 S/s 50 Hz and 60 Hz rejection
  8. Accelerometers, Proximity Probes, Microphones
  9. 2 to 6 triggers/tachometers - 2 to 6 generator outputs
  10. 100kHz sampling rate
  11. Single Cord Power supply and internal battery
  12. Desktop extension leaf
  13. Stand alone recorder (D-rec) with removable 60 GB hard drive

Highly Portable with its Rugged and Compact Design


Real-time Analyzer and Recorder

Mobi-Pack™ can both analyze real time data or record raw time data for later processing.
Using its 16 channels will let you carry your tests with minimum downtime and minimized number of machine stops.

Made for the field

Mobi-Pack™ thrives in dirty, dusty, and humid places or magnetic fields making no compromise on the power and precision of the instrument. Shocks and vibrations during transport or even operation will not prevent it from acquiring the critical data it is meant to capture.
Moreover, the Mobi-Pack™ will even continue acquiring data with the same precision in high shock and vibration environments.



Direct Recording with Removable Disk

Mobi-Pack offers flexible recording capabilities with its Mobi-Disk™ and its integrated D-rec control panel.

Instrument recording modes:

  1. Monitor: control your recorded signals and spectra through the Ethernet port
  2. Back-up: save your time data continuously with real-time analyses
  3. Stand-alone: using the control panel, set up and record without PC



Dual ports removable disk:

  1. Personal data storage: keep your data with you while sharing the instrument with your colleagues
  2. High performances: reinforced (SSD available), large capacity (60 GB), high throughput (40 channels @ 40 kHz)
  3. Direct post-analysis on your PC with USB
