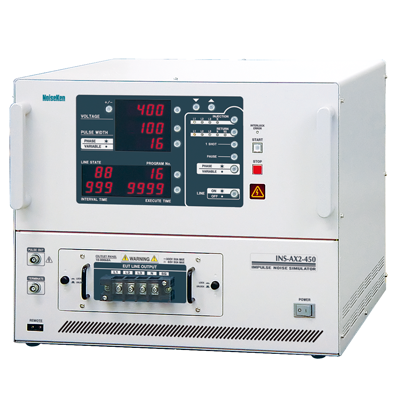

Impulse Noise Simulator INS-AX2-220/250/420/450
GENERAL
The INS-AX2 series simulators are the advanced version of the conventional manually operated INS-4020/4040 simulators, maintaining the identical interference signal characteristics while offering a new level of ease of use.
FEATURES
- An innovative,motor driven coaxial switch mechanism eliminates the need to manually plug and unplug coaxial connectors, allowing a preset test sequence to be carried out seamlessly including pulse width and coupling mode changes, automatic voltage ramp and others.
- As well as manual control, the simulator can be remote-controlled through a fiber optic computer interface. A Windows control software package is supplied as an included accessory.
- Floating output
- 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
- Internal switchable terminators
- Easily changeable and safety-interlocked outlet panel (EUT interface)
- 3 channels EUT fail input
SPECIFICATIONS
| Item |
Model |
| INS-AX2-220/250 |
INS-AX2-420/450 |
| Pulse output voltage |
0.01 ~ 2.00kV±10% at 0.01kV step |
0.01 ~ 4.00kV±10% at 0.01kV step |
±0.04kV allowance for <0.1kV setting
When the output is terminated by the internal resistors. |
| Output polarity |
Positive or negative |
| Pulse |
Pulse width |
50, 100, 200, 400, 500, 800, 1000ns ±10%, 10ns±3ns |
| Rise time |
<1ns |
| Output impedance |
50 ohm system (53.5 ohm) |
| Pulse repetition mode |
Variable |
10ms ~ 999ms±10% |
16ms ~ 999ms±10% |
| Phase |
Injection phase angle 0 to 360 degrees±10 degrees
EUT power supply:>AC90V, 50/60Hz±10% |
| 1 shot |
Single pulse generation, each time the 1 SHOT button is pressed.
Synchronized output with phase angle setting in PHASE mode |
| Power capacity of EUT |
INS-AX2-220:
Single phase AC240V/DC65V 20A
INS-AX2-250:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10% |
NS-AX2-420:
Single phase AC240V/DC65V 20A
INS-AX2-450:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10% |
| Power supply |
AC 100V~240V±10%, 50/60Hz±10% |
| Power consumption |
110VA |
| Operating temperature and humidity range |
15 ~ 35°C, 25 ~ 75% (No dewing shall occur.) |
| Dimensions |
W 430 x H 350 x D 470mm, projection excluded |
| Weight |
INS-AX2-220: Approx. 30Kg
INS-AX2-250: Approx. 38Kg
|
INS-AX2-420: Approx. 30Kg
INS-AX2-450: Approx. 38Kg |
| Mercury relay unit |
Model: 04-00014A |
Model: 04-00015A |
TRIANGULAR PULSE ADDITION (Factory Option)
| Parameters |
Specifications |
| Output pulse waveform |
Triangular pulse |
| Pulse output voltage |
2kV (220/250) and 4kV (420/450) max (when the output is terminated by the internal resistors) |
| Output polarity |
Positive or negative |
| Pulse |
Duration |
1μs±30% |
| Rise time |
<40 ns |
STANDARD ACCESSORIES
| INS-AX2-220/420 |
INS-AX2-250/450 |
| Outlet panel (Single phase terminal block type) Model:18-00067A AC240VDV65V20A max |
Outlet panel (3-phase terminal block type) Model:18-00068A AC500VDV250V50A max |
Power cable
Remote control software (CD-ROM) Model: 14-00033A
Optic-RS232C converter Model 07-00017A
Optical cable (5m)
D-sub conversion connector
Instruction manual (for the simulator and remote control software)
|
