ESD Test Environment Model ESS-801GL
Conforming to IEC 61000-4-2
ESS-801GL

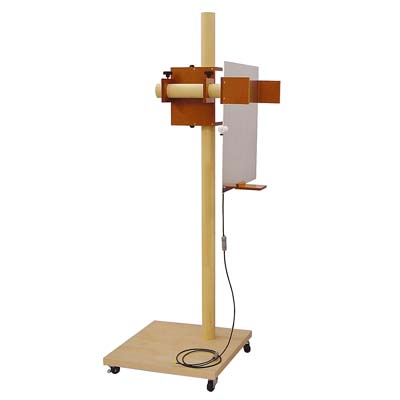

(Vertical coupling plane&Cable with resistors)
GENERAL
The Test Environment Model: ESS-801GL is a floor-standing vertical coupling plane and associated items used for discharge immunity tests for floor-standing equipment in accordance with IEC 61000-4-2 standard.
FEATURES
- Adjustable height vertical coupling plane.
- The distance from the coupling plane to the EUT surface can be easily maitained by a set of 10cm spacers.
- Wooden insulation pallet minimizes the loss of energy produced by the simulator and the loss of high-frequency electromagnetic field, resulting in excellent determination and reproducibility.
CONSTITUTION OF ESS-801
| Description and Model |
Specifications |
Quantity |
Material |
Insulation pallet
Model 03-00024A |
Dimensions:
(W)1200x(H)1200x(t)100 mm |
1 piece |
Wood |
Ground plane
Model: 03-00007A |
Dimensions:
(W)1800x(H)1000x(t) 1.5 mm |
1 set
(3 pieces) |
Aluminum |
|
Floor standing vertical coupling plane
Model: 03-00034A |
Dimensions:
(W)540x(H)1540x (D)500 mm |
1 piece |
Wood, aluminum, bakelite |
Cable with discharge resistors
Model: 05-00054B |
470k ohm x 2 (resister value)
Length: 2000mm |
1 piece |
|
TEST SET-UP EXAMPLE
