  [자동차과도서지시험기] 자동차과도서지시험기

  모델명 : ISS-7610

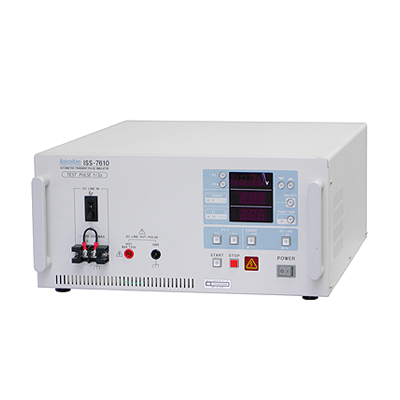

Automotive Transient Surge Simulator Model ISS-7610

Pulse 1, 2a Generator



FEATURES



  • Pulse 1 and Pulse 2a generating unit
  • A built-in 60V/30A Coupling Network allows independent operation.
  • Wide variety of selections of the output resistances Ri and Pulse Widths td and their combinations

SPECIFICATIONS

Parameters

Specifications (Pulse 1)

Specifications (Pulse 2a)
Output Voltage (Us) -5 ~  -720V ±10%  ( -1V step)  5 ~  300V ±10% ( 1V step)
Output Resistance (Ri) 10 ohm, 30 ohm, 50 ohm 2 ohm, 4 ohm, 10 ohm,
30 ohm, 50 ohm
Duration (td) 50µs, 200µs, 300µs, 500µs,
1ms, 2ms
50µs, 200µs, 300µs, 500µs
Rise time (tr) 1µs: -0.5µs/+0µs
3µs: -1.5µs/+0µs
1µs: -0.5µs/+0µs
Pulse period (t1) 0.5s ~ 99.9s (0.1 step) 0.1s ~ 99.9s (0.1 step)
Pulse period (t2) 200ms -
Pulse period (t3) < 100µs -
COUNT 1~99900 times  7segment LED
Circuit Breaker Rated current 40A
Remote
control
from PC
Interface Option: Optical Interface Unit Model: 07-00022A
Software Option: Remote Control Software Model: ISS-7601
Compatible OS Windows XP
DUT capacity DC60Vmax, 30Amax
Power supply AC100V, 110V, 120V, 200V, 220V, 240V ±10% (50/60Hz)
Operating temperature
and humidity
 23°C±5°C / 25~75% (No dewing shall occur.)
Dimensions (W) 430 X (H) 200 X (D) 522 mm
(Projections excluded)
Weight Approx. 20kgs
Power consumption Approx. 260VA
Standard accessories Instruction manual, Replacement fuse (3.15A),
Interlock plug, Short-circuit lead, DC Input Cable (2m)
Output Cable (2m)
