ESD Test Environment Model ESS-801

Conforming to IEC 61000-4-2

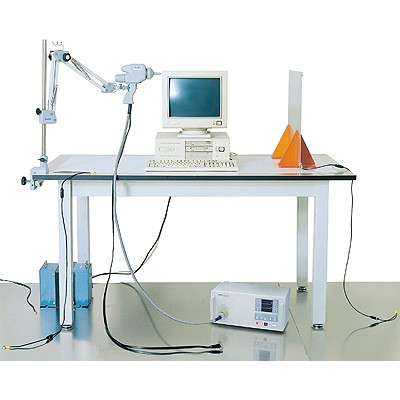

Test set-up example with ESS-801

GENERAL

The Test Environment Model: ESS-801 is a test table and associated items used for discharge immunity tests for table-top type equipment in accordance with IEC 61000-4-2 standard.

FEATURES

A complete package to easily build-up ESD test set-up for table-top equipment called for in the 61000-4-2 standard.
Wooden table minimizes the loss of energy produced by the simulator and the loss of high frequency electromagnetic field, resulting in excellent determination and reproducibility.
It can also be used for other noise tests such as impulse noise tests.

CONSTITUTION OF ESS-801

Description and Model	Specifications	Quantity	Material
Test table Model 03-00039A	Dimensions: (W)1600x(H)800x(D)800 mm Weight: 26 kgs Weight proof: 100 kgs	1 unit	Lauan plywood
Vertical coupling plane Model: 03-00005A	Dimensions: (W)500x(H)500x(t) 1.5 mm	1 piece	Plane:aluminum Stand: bakelite Center adapter:delrin
Ground plane Model: 03-00007A	Dimensions: (W)1800x(H)1000x(t) 1.5 mm	1 set (3 pieces)	Aluminum
Insulation sheet Model: 03-00004A	Dimensions: (W)1450x(D)650x(t) 0.5 mm	1 piece	Polyvinyl chloride
Cable with discharge resistors Model: 05-00054B	470k ohm x 2 (resister value) Length: 2000mm	2 pieces
Horizontal coupling plane Model: 03-00020A	Dimensions:(W) 1600 x (D)800 x (t)1.5 mm	1 piece	Aluminum
