Electrostatic Discharge Simulator ESS-S3011/GT-30R New
EN/IEC 61000-4-2 Ed2 & ISO 10605 Ed2 Compliant
SMART ESD simulator which supports all phases of the test (Pre to Post)
Product catalog
ESS-S3011 & GT-30R

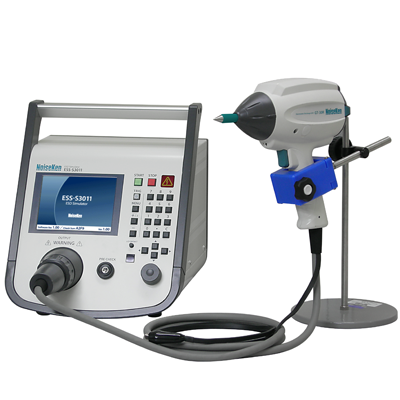

(Note: Discharge gun stand is an optional accessory.)
FEATURES
- EN/IEC 61000-4-2 Ed2 Compliant
- ISO 10605 Ed2 Compliant (Note: Optional gun head and CR units are required.)
- Pre-test
"3 pre-checking functions” taking the confirmable test into the account
"CR constant indicator” to ensure correct attachment is in place
“Ten-key & Rotary knob” to ease the setting
“Infra-red Remote Controller” to allow remote Generator setting
“Discharge Detecting Function” to realize the air-discharge confirmation
“Lightest Discharge Gun in the market” for better continuous operation
“White LED light” to show Discharging points
“Control Software” for Test Result Reporting and PC Control
(Scheduled to be downloaded from NoiseKen web-site)
SPECIFICATIONS
ESD Simulator Main Unit Model : ESS-S3011
| Items |
ESS-S3011 specifications |
| Polarity |
Positive or negative |
| Output voltage |
0.2 to 30.0kV +/-5% (30.5kV Maximum)
0.2 to 10kV: 0.05V step, 10.0 to 30.0kV: 0.1kV step |
| Repetition cycle |
0.05s to 99.9s +/-10% / Manual
0.05s to 10.0s: 0.05s step, 10.0 to 99.9s: 0.10s step |
| No. of time of discharge |
1 to 60,000 times /continuous |
| Discharge mode |
Contac discharge / Air discharge |
| Radiation level mode |
Normal mode / Extra mode |
| Trigger mode |
Gun trigger / Main unit trigger / External trigger |
| Operation panel |
Color LCD / Push-buttons (Partially lighting) |
| Gun holder |
Standard attached (to hold the discharge gun Model GT-30R) |
| Radiation mode select switch |
Extra / Normal switching function built-in |
| Discharge detection |
Discharge detection function in air-discharge mode equipped |
| Pre-checking function |
Following 3 steps function equipped (by under operation. Not the calibration but just checking)
SETP1 High voltage output checking
STEP2 Withstanding voltage checking
STEP3 Discharge relay operation checking |
| CR & Gun head checking |
CR constant and gun head recognizable (with an indicator to prevent the wrong combination) |
| IEC standard test mode |
Contact discharge mode: 2.0, 4.0, 6.0, 8.0 kV step
Air discharge mode: 2.0, 4.0, 8.0, 15.0 kV step |
| Manual test mode |
Contact/Air discharge mode: 0.20kV to 30.0kV
Sweep function available
Up to 50 units (test settings) storable |
|
Sequence test mode |
Seamless run of the selected test sequence
No. of steps per one sequence: up to 22 steps
No. of test sequences: up to 20 |
| Warning lamp |
Lights up while the HV circuitry is on.
Blinks while discharges are in progress. |
| Charging capacitor and resistance |
150pF +/-10%, 330 ohm+/-10% (built into Discharge Gun GT-30R) |
| Main unit charging resistance |
10M ohm (53M ohm for combination with Discharge Gun GT-30R) |
| AUX connector |
D-SUB 15 pin, female connector
Connection of Warning Lamp (optional)
Connection of Automatic ESD Eliminator (optional)
External interlock input
External trigger input |
| Optical communication connector |
Optic connector for PC communication (serial interface) |
| Power supply/ Power consumption |
100V to 240V AC, 50Hz/60Hz +/-10% 75VA |
| Included accessories |
Remote controller 13-00004A, Gun holder, Instruction manual |
| Dimensions and weight |
(W) 270 X (H)312 X (D)295 mm
Approx. 7.0kg (gun holder excluded) , Approx. 7.5kg (gun holder included) |
Discharge Gun Model : GT-30R
| Items |
GT-30R specifications |
| Output voltage |
30.5kV Max |
| Polarity |
Positive or Negative |
| Repetition cycle |
0.05s and over Note) Guaranteed value is 0.1s and over (330pF and under) |
| Discharge mode |
Contact or Air |
| Charging resistor |
Built-in CR unit |
| Charge/Discharge capacitor & Discharge resistor |
Built-in CR unit |
| High voltage connector |
Composite connector of high voltage and signal line (male) ｡ﾊNoiseKen custom) |
| Operation switch |
Discharge trigger |
| LED irradiator |
White LED light built-in for irradiating EUT ｡ﾊFocusing point is the tip) |
| Included accessories |
CR unit (150pf-330 ohm) 06-00073A
Conical discharge tip 12-00007A
Round discharge tip 12-00008A
Instruction manual |
| Dimensions and weight |
(W) 83X (H) 217 X (D) 229 mm (projection excluded)
Approx. 0.8kg (Cable and connector excluded)
Approx. 10.8kg (Cable included, connecter excluded) |
Designs and specifications are subject to change without notice.
