  [데이터 플랫폼] 데이터 플랫폼

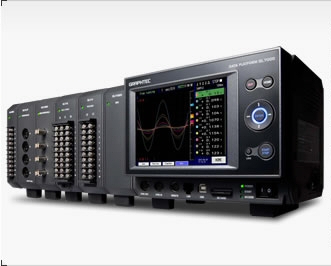

  모델명 : GL7000


GL7000

Instrument
GL7000Modular system allows expansion of measurements and channelsSuitable for a variety of measurements by different type of amplifier moduleMultiple storages for long term measurementEasy operation with large display and touch panelSupport stand-alone operation and embedding into a systemHigh performance application softwareModules and External dimensions

The module can be expanded to accommodate a wide variety of measurements

It can measure the desired signal according to the needs and can expand into other applications adding different amplifier modules.

Modular system allows expansion of measurements and channels

A wide variety of measurements can be supported by the amplifier module

Measurements for different applications can be added to the amplifier module. It is also possible to mix measurements by adding different types of modules.

The Voltage module, Voltage/Temperature module, High Speed Voltage module and Logic/Pulse models are available. The other modules will be released sequentially starting in the autumn of 2012.

Amplifier can be attached to up to 10 modules

Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.

Maintains sampling speed even if the number of amplifier modules are increased

Voltage* and Volt/Temp amplifier can maintain high-speed and multi-channel measurements without dropping the sampling speed, even if the number of modules are increased.

* In the High-speed voltage and Logic/Pulse module, the sampling speed will be limited by the recording medium.

Sampling speed

Amplifier Module Channels in 1 module Max. sampling speed in the module Media type to save data Max. sampling speed in the GL7000
Attached to 1 or 2 modules Attached to3 or 4 modules Attached to 5 to 10 modules
Voltage Module
(GL7-V)
10 channels 1 k Samples/s
(1ms interval)
Built-in RAM 1 k Samples/s
(1ms interval)
Built-in Flash
SD card
SSD *3
Volt./Temp. Module
(GL7-M)
10 channels 100 Samples/s
(10ms interval)
Built-in RAM 100 Samples/s
(10ms interval)
Built-in Flash
SD card
SSD *3
High-speed voltage Module
(GL7-HSV)
4 channels 1 M Samples/s
(1μs interval)
Built-in RAM 1 M Samples/s
(1μs interval)
Built-in Flash 1 k Samples/s
(1ms interval)
SD card
SSD *3 1 M S/s
(1μs interval)
500 k S/s
(2μs interval)
200 k S/s
(5μs interval)
Logic/Pulse Module
(GL-L/P)
16 channels In Logic mode,1 M Samples/s
(1μs interval)
Built-in RAM 1 M Samples/s
(1μs interval) *1
Built-in Flash 1 k Samples/s
(1ms interval) *1
SD card
SSD *3 1 M S/s
(1μs interval)
500 k S/s
(2μs interval)
200k S/s
(5μs interval) *1
In Pulse mode,10 k Samples/s
(100μs interval)
Built-in RAM 1 M S/s
(1μs interval)
Not Available *2
Built-in Flash 1 k S/s
(1ms interval)
SD card
SSD *3 1 M S/s
(1μs interval)
*1:
Using in Logic mode, the module can be attached up to 7 units.
*2:
Using in Pulse mode, module can be attached up to 2 units.
*3:
SSD module is an option. Number of channels for pulse input will be limited when the High-speed voltage module and Logic/Pulse module are used simultaneously.

Require more channels

Multi-channel measurement is possible to 1120 channels using the PC

Up to 10 units of the GL7000 can be connected to 1 PC through LAN or USB and controlled using the software.

Up to 5 units of the GL7000 can be fully synchronized using the sync. Cable

The start/stop trigger, and sampling can be synchronized in the GL7000 when they are connected by a sync cable. The master and slave units are automatically identified.

TOP

Suitable for a variety of measurements by different type of amplifier module

Suitable for a variety of measurements due to flexible module combinations

Four type of modules are available.

Voltage Module

The output of various sensors such as displacement, pressure, wind speed, etc.
Cell voltage of the battery.

Voltage/Temperature Module

Measuring temperature and voltage simultaneously. For environmental tests, etc.

High Speed Voltage Module

Measurement of parameters in the inverter system, vibration test, drop test, etc.

Logic/Pulse Module

Timing of system control signal, encoder output, rotational speed, flow rate, etc.

Amplifier module

Module Voltage High Speed Voltage Voltage/Temperature Logic/Pulse
Model number GL7-V GL7-HSV GL7-M GL7-L/P
Number of input channels 10 channels 4 channels 10 channels 16 channels
Input terminal Screw terminal
(M3)
BNC connector Screw terminal
(M3)
Specific connector
Input method All channel isolated unbalanced input, simultaneous sampling All channels isolated balanced input, scanning channels for sampling All channels common ground, simultaneous sampling
Sampling speed 1 k Samples/s to 1 Sample/h
(1ms to 1hr. interval)
1 M Samples/s to 1 Sample/h
(1μs to 1hr. interval)
100 Samples/s at 1-10ch to 1 Sample/h
(10ms at 1-10ch to 1hr. interval)
Logic mode: up to 1 M Samples/s (1μs interval)
Pulse mode: up to 10 k Samples/s (100μs interval)
Measurement range 100mV to 100V F.S., and 1-5V F.S. Volt.: 20mV to 50V F.S., and 1-5V F.S.
Temp.:Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26)
RTD: Pt100 (IEC751), Pt1000 (IEC751), Pt100J (JIS)
Bi-level signal, up to 24V
Select either Logic or Pulse mode
Logic: Signal pattern
Pulse: Counting in Instant, Accumulating, Rotation
(max. 15 million count)
A/D converter Successive Approximation, 16 bits Sigma-delta, 16 bits
Withstand voltage Between channels: 1000 V, 1min.
Between inputs and GND: 1000 V, 1 min.
Between channels: 350 V, 1 min.
Between inputs and GND: 350 V, 1 min.

Built-in RAM 2 million samples

Modules will be released sequentially starting in the autumn of 2012.

High Voltage Module

Measurement of the high voltage in the power line of equipment, Electric or Hybrid Vehicle testing, etc.

Charge Module

Measuring the output of sensor using the Piezoelectric device. Measurement of the vibration, acceleration, pressure, force, etc.

Voltage Output Module

An analog voltage corresponding to the captured data is output. Simulation testing by the actual measured data, the vibration test, etc.

Power Measurement Module

Measuring the voltage, current and power. Measurement of the power line of the device, etc

DC Strain Module

Measuring the output of sensor using the strain gauge. Measurement of the load, displacement, vibration, acceleration, torque, pressure, etc.
