Aerospace instruments

A total Telemetry Ground Station solution

<iframe name="ifrm1" width="1000px" height="1000px" frameborder="0" allowtransparency="true" allowfullscreen="true" scrolling="no" title="fb:like Facebook Social Plugin" src="http://www.facebook.com/plugins/like.php?app_id=220813104725639&channel=http%3A%2F%2Fstatic.ak.facebook.com%2Fconnect%2Fxd_arbiter%2F1ldYU13brY_.js%3Fversion%3D41%23cb%3Df67caca5%26domain%3Dwww.dewesoft.com%26origin%3Dhttp%253A%252F%252Fwww.dewesoft.com%252Ff2614141e%26relation%3Dparent.parent&container_width=720&href=http%3A%2F%2Fwww.dewesoft.com%2Fproducts%2Faerospace-instruments&locale=en_US&sdk=joey&send=true&show_faces=false" class="" style="box-sizing: border-box; position: absolute; border-style: none; border-width: initial; visibility: visible; width: 450px; height: 20px"></iframe>
PCM-FS2

PCM-FS2
2 channel PCM receiver and Frame Sync

DS-CAM 300

Chapter 10 Analyser

Telemetry PCM Frame Sync Brick

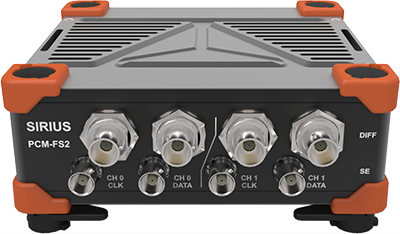

When you need to process PCM telemetry stream we have you covered with PCM-FS2. PCM-FS2 is a dual channel PCM telemetry processor (Frame Sync/IRIG Class II Decommutator) with maximum stream rate of 40 Mbit/second. The units can then be daisy chained together to allow for higher channel counts.

PCM-FS2 PCM telemetry receiver
40 Mbit/sstream rate
Frame syncsupport
Decomsupport


Small size of PCM-FS2 allows for great mobility. Bring it together with your laptop for a flight line checkout or combine it with SIRIUS DAQ instrument and SBOX optionoption to provide the pilot telemetry data processing with a real-time visual display of the telemetry data. This gives the ultimate flexibility to the engineer to solve their mission requirements.






Chapter 10 Analyser

DEWESoft provides complete software based Chapter 10 analyser. It has the capability to record and playback IRIG-106 Chapter 10 files. With the ability to record data in throughput, packed, and unpacked modes the user has the mission flexibility needed in the telemetry market. This gives complete, all-in-one processing and recording package for the ground station.



Chapter 10 analyser system



Chapter 10 Analayse Mode

Chapter 10 Analyse Mode

Chapter 10 Channel Setup

Chapter 10 Channel Setup

Chapter 10 Analayse Mode

Chapter 10 Analayse Mode


Main features

  • Utilizes standard input format for telemetry data
  • Interface with Chapter 10 Ethernet packets in real time consisting of:
    • PCM Data (unpacked, packed and throughput)
    • Mil-1553 and ARINC-429 BUS Data
    • Video
    • Ethernet & UART Channels
    • Analog, Ethernet data
    • TMATS (setup channel)
    • Timing (absolute time)
  • Load and replay any recorded Chapter 10 file
  • Record Chapter 10 files or Ethernet packets from raw PCM

User Friendly UI

One of the key advantages of Dewesoft X software are data processing capabilities. Over the past years we have covered lots of application areas with expert modules, so that the user is only a click away from the total solution.

Designed with a point and click interface DEWESoft X software gives easy access to extract individual parameters out of your IRIG-106 Chapter 10 files or packets.



PCM plugin setup

PCM Plug-in Channel Setup

Mil-1553 & ARINC 429 plugin setup

Mil-1553 & ARINC 429 Plug-in Channel Setup

Build your own instrument screen

Choose from a list of prepared instruments and compose your own screen

Tech specs



PCM-FS2

PCM-FS2

Inputs
PCM Input Channels 2 PCM frame sync input or simulator output (software selectable)
Stream Rate 40 Mbit/sec, both channels, input or output
Single ended PCM input (BNC)
Signal Level TTL with 2V threshold and 200mV hysteresis
Input Resistance 10 kOhm, 75 Ohm and 50 Ohm (software selectable)
Differential Input (Triax)
Signal Level RS-422/485 logic '1' when A-B>=-50mV logic '0' when A-B>= -200mV
Input Resistance 124 Ohm
IRIG input (BNC)
IRIG input (BNC) Modulation AC or DC
Code type IRIG A, B and G
IRIG output (BNC)
Modulation AC or DC (also on sync connector)
Code type IRIG B
Sync connectors
Connector type 4 Pin LEMO 00B
Functions Sync between other SIRIUS Analog units along with DS-CAM (video) inputs
General specs
Power supply +5 V from USB
Maximum power consumption 11W
Interface USB 2.0
Physical dimensions 145x135x65mm (5.71x5.31x2.56 inch)
Weight 920g (2.03 lbs)
Operating temperature -10°C to +50°C
Storage temperature -40°C to +70°C







Total 11
