  [DS-NET DAQ 시스템] DS-NET DAQ 시스템

  모델명 : DS-NET


DS-NET

Measurement and control DAQ system for demanding applications!

<iframe name="ifrm1" width="1000px" height="1000px" frameborder="0" allowtransparency="true" allowfullscreen="true" scrolling="no" title="fb:like Facebook Social Plugin" src="http://www.facebook.com/plugins/like.php?app_id=220813104725639&channel=http%3A%2F%2Fstatic.ak.facebook.com%2Fconnect%2Fxd_arbiter%2F1ldYU13brY_.js%3Fversion%3D41%23cb%3Df147fce468%26domain%3Dwww.dewesoft.com%26origin%3Dhttp%253A%252F%252Fwww.dewesoft.com%252Ff14a65bf84%26relation%3Dparent.parent&container_width=720&href=http%3A%2F%2Fwww.dewesoft.com%2Fproducts%2Fds-net&locale=en_US&sdk=joey&send=true&show_faces=false" class="" style="box-sizing: border-box; position: absolute; border-style: none; border-width: initial; visibility: visible; width: 450px; height: 20px"></iframe>

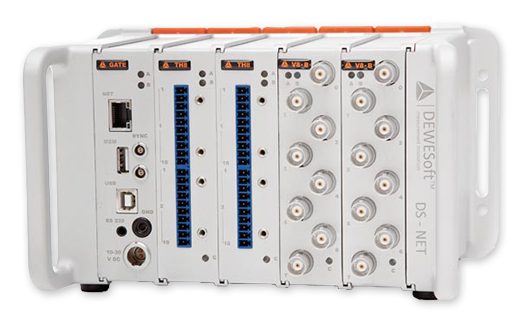

DS-NET data acquisition system


Features



Introduction

DS-NET is a measurement and control system designed for many demanding applications, especially in the fields of:

  • component testing,
  • engine testing,
  • process performance testing,
  • structural monitoring,
  • industrial monitoring.

DS-NET system is rugged and scalable from two channels control unit to a large synchronized measurement grid withthousands of channels. It is as flexible as being a stand alone data logger, a channel expansion for other Dewesoft instruments, an Ethernet based distributed measurement system or a full-featured independent data acquisition instrument.

DS-NET systems

Completely modular architecture allows perfect system configuration needed for the application. A wide range of DS-NET modules are available to support almost any type of input and output signals. These multi-function modules can be combined in countless ways and provide top notch data recording and process control.

Rugged mechanical design

CNC aluminium construction provides maximal ruggedness and stability at low weight and fanless cooling at operating conditions from -20° to +60° C (CPU: 0° to +60° C). No moving parts or cables are used in the internal electronics.

DS-NET design

Rugged electronic design

All inputs are galvanically isolated with 500 - 1200 V from channel to channel and to chassis GND. Most of the inputs offer a wide range of sensor connections with a synchronous sampling speed of up to 10 kS/s per channel. The aggregate sampling rate per gate is 160 kS/s. Due to its modularity the system offers up to 128 measurement channels including analog, digital, counters and CAN data.

Any sensor

A wide range of sensors can be connected to the isolated inputs such as: voltages up to 1000 V, currents 0-20 mA, 10..1000 A (clamps), thermocouple B,E,J,K,L,T,U,N,R,S (built-in CJC) PT100, PT1000, strain gauge 1⁄4, 1⁄2, full bridge (DC or carrier frequency excitation), IEPE, ICP sensors, resistance, potentiometers, LVDT, frequency, pulse width, encoders, counter, time, status. For hybrid applications we offer high isolation with 1200 V (5 k V pk) for voltage and thermocouple inputs.

DS-NET sensors

Stand-alone option with CPU

For maximum portability we offer DS-NET CPU module which adds a full-featured PC to your DS-NET system and turns it into a complete stand-alone instrument. This enables you to run Dewesoft X software locally. Measurement data is stored directly onto the internal flash disk. Attach a keyboard and display for full control and to display the measurement data.

Modules



DS-GATE

Any DS-NET system starts with one DS-GATE as the base and then up to 16 DS-NET-modules can be chosen to complete one system. An optional DS-NET CPU module can be added to include a local computer.

DS-GATE specs.

Module variations

DS-NET modules are available for almost any type of input and output signals. These modules are intelligent and contain all the setup data that you can easily define within our award winning Dewesoft X software for maximum reliability and deterministic control. Basic calculations like minima, maxima, data reduction and filtering are done directly inside each module.

Hot swap feature

All DS-NET-modules are hot swappable and have auto-loading configuration and addressing functionality. This makes system serviceability extremely efficient and effective.




Tech specs



ACC2
Specs
CFB2
Specs
BR4
Specs
V8
Specs
V8-200
Specs
V4
Specs
V4-HV
Specs
TH4
Specs
TH8
Specs
DIO8
Specs
AO4
Specs
Number of Channels 2 2 4 8 8 4 4 4 8 8 4
Data Rates 10 kHz 100 Hz 10 kHz
Isolation Voltage [V] 500 500 500 500 500 1.2k 1.2k 1.2k 500 500 500
Input types
Voltage
Max. Range

±60V

±10V

±10V

±200V

±10V

±1kV

±80mV

±80mV
Current (0..25 mA)
Resistance
Potentiometer
Pt100, Pt1000
Thermocouple
Full, half and quarter bridges
Inductive full and half bridges
LVDT
IEPE/ICP Sensors
Frequency Signal
Pulse Width




Total 11
