  [액세서리] 액세서리

  모델명 : 액세서리


Displays

Portable, ruggedised (multi) touch displays for mobile and other applications. Both displays are compatible with every DEWESoft instrument and/or industry standard PC system.

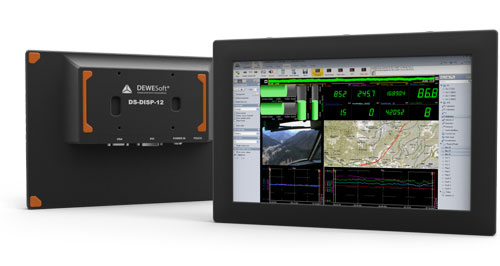

DS-DISP-12

DS-DISP-12

Technical specs
TFT Display Yes
Viewable Size Image 12.1''
Active display Area (mm) 261.12(H) x 163.2(V)
Number of Pixels 1280 RGB (H) x 800 (V)
Contrast Ratio 700:1 (typ.)
Brightness 700 (typ.)
Viewing Angle (CR>=10) -80~80 (H); -60~80(V)
Synchronization Range Horizontal/Vertical 31.5~91.1 kHz / 60~85Hz
Recommended Resolution 1280 x 800 @60Hz
Signal Connector VGA / DVI inputs
Power Source 9 - 36VDC
Power Consumption 12W (0.5A @ 24V)
Power Management VESA DPMS Compliant
General specs
Dimensions (W x H x D)
without suction cup
312 x 50 x 214 mm (12.18 x 1.87 x 8.43 in)
Weight 1890 g (4.17 lbs)
Mounting 1 3x 1/4-20 UNC thread insert
Mounting 2 VESA mounting compatible
Touch Screen PCAP
Touch Screen Interface USB
Operating temperature 0°C ~ 60°C
Storage temperature -30°C ~ 80°C

MOB-DISP-10

MOB-DISP-10

Technical specs
TFT Display Yes
Viewable Size Image 10.4'' (16:9)
Active display Area (mm) 220,416(H) x 129.15(V)
Number of Pixels 1024 RGB (H) x 600 (V)
Contrast Ratio 500:1 (typ.)
Number of Pixels 1024 RGB (H) x 600 (V)
Brightness (cd/m2) 250 (typ.)
Viewing Angle (CR>=10) -70~70 (H); -60~50(V)
Synchronization Range Horizontal/Vertical 31.5~46.9 kHz / 60~75Hz
Recommended Resolution 1024 x 600 @60Hz
Signal Connector Analog RGB
Power Source 6 - 36VDC
Power Consumption typ. 5W (0.4A @ 12V)
Power Management VESA DPMS Compliant
General specs
Dimensions (W x H x D)
without suction cup
174 x 40 x 266 mm (6.9 x 1.6 x 10.5 in)
Weight 1 kg (2.2 lbs)
Mounting 1 suction cup
Touch Screen Resistive
Touch Screen Interface USB

Batteries

Our battery packs are designed and tested to work reliably with our instruments. They are CNC-ed out of a single block of aluminium and tested for rough testing environments. They are made for field applications.



DS-BP2i powering SIRIUS R8 and KRYPTON modules

DS-BP2i powering SIRIUS R8 and KRYPTON modules on top of the highest peak in Slovenian Alps



DS-BP2i

DS-BP2i

DS-BP2i can for example power a single ACC+ slice for over 12 hours (e.g. when you use it with an external laptop) or a SIRIUS SBOX S-BOX and an ACC+ slice for over 2 hours.


Technical specs
Input Voltage Range 10-36V
Output Voltage 21V
Output Voltage (running on batteries) 14.5V
Max. Power Out 160W
Total capacity (min) at fully charged state 12.5Ah
Battery life (min) at max. rated power 1h
Wrong polarity protection
Hot-swappable
Status display
Isolation 500V
General specs
Weight without batteries 1.6 kg (3.5 lbs)
With all batteries 2.9 kg (6.4 lbs)
Single battery weight 0.65 kg (1.4 lbs)

DS-BP4i

DS-BP4i

DS-BP4i can power a single ACC+ slice for over 24 hours (e.g. when you use it with an external laptop) or a SIRIUS SBOX S-BOX and an ACC+ slice for over 4 hours.


Technical specs
Input Voltage Range 12-36V
Output Voltage 24V
Output Voltage (running on batteries) 14.5V
Max. Power Out 250W
Total capacity (min) at fully charged state 25Ah
Battery life (min) at max. rated power 1.5h
Wrong polarity protection
Hot-swappable
Status display
Isolation 500V
General specs
Weight without batteries 1.9 kg (4.2 lbs)
With all batteries 4.5 kg (9.9 lbs)
Single battery weight 0.65 kg (1.4 lbs)


The battery pack can be connected to any SIRIUS system via the click-mechanism.


Click mechanism

USB hubs

USB hubs and USB extension accessories for extending USB connection to the DAQ devices for DEWESoft instruments.



DS-HUB7

DS-HUB7

Ruggedised USB hub for connecting up to 7 SIRIUS slicesinto one system. DS-HUB7 uses clever click mechanism to be stacked up together with other SIRIUS slices.


Technical specs
Number of USB ports 7
Type USB 2.0
Total data throughput 4 MS/s DUAL CORE (160 dB)
8 MS/s SINGLE CORE (120 dB)

USB-EXTENDER1

DS-HUB7

Well-tested solution for USB extension. Extends USB up to 100 m (328 ft.) over UTP cable. 16 remote AI channels over 50 m Ethernet cable (and 50 m sync cable) @ 185 kS/s. Uses inexpensive CATx cable you may already have installed in your building. True plug and play - no drivers needed.


Technical specs
Number of USB ports 4
Type USB 2.0
Total data throughput Transmits signals up to 480 Mbps

MSI adapters

The versatile MSI adapters convert any DEWESoft instrument's DSUB9 analog input into whatever is needed. For example: add ICP inputs to your DEWE-43 by connecting the MSI-ACC. The adapter is automatically recognized by TEDS and all the settings are done in DEWESoft X Software accordingly.



MSI-ACC
MSI-ACC
Isotron (constant current powered) adapter
Excitation current 4 mA@21 V, highpass filter 1.5 Hz, BNC connector
Automatic adapter identification
MSI-V-200
MSI-V-200
± 200 V input adapter
Differential input configuration, BNC connector
Automatic adapter identification
MSI-RTD
MSI-RTD
Pt100, Pt200, Pt500, Pt1000 and Pt2000 adapter
2, 3 and 4 wir
