  [AC 전원공급기] Programmable AC Source

  모델명 : 61700 series

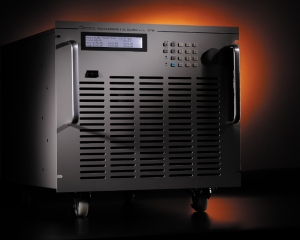

Programmable AC Source



Programmable AC Source



CE Mark
Key Features:


  • Output Rating:
    Power:
    1.5KVA, 3ø (61701);
    3KVA, 3ø (61702);
    4.5KVA, 3ø (61703);
    6KVA, 3ø (61704);
    12KVA, 3ø (61705)
    Voltage: 0-150V/0-300V
  •
  • Frequency: 15~1.2kHz
  •
  • Phase angle: 0~360˚ Programmable
  •
  • Built-in PFC, provides input power factor of over 0.98
  •
  • AC+DC output mode
  •
  • Comprehensive measurement capability,V, Irms, Ipk, Iinrush, P, PF, CF of current etc.
  •
  • Programmable r.m.s. current limit
  •
  • Turn on, turn off phase angle control
  •
  • Full protection: OP, OC, OV and OT protection
  •
  • Optional GPIB and RS-232 interface
  •
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
  •
  • User-definable power-on status
  •
  • Built-in output isolation relays
  •
  • Easy use graphic user interface: softpanel (Option)
  •
  • Optional function for transient voltage output, including LIST, PULSE, STEP ans INTERHARMONICS mode
  •



The Chroma Programmable AC Power Source model 61700 series delivers pure, 5-wire, 3-phase AC power. Unlike the traditional 3-phase AC power source, it includes low power rating models at very low cost. Users can program voltage and frequency, measure the critical characteristics of the output on its LCD display. It delivers the right solution to simulate all kinds of input condition of UUT to be utilized in R&D and QA. It is also suitable for commercial applications from laboratory testing to mass productions.

The 61700 supplies the output voltage from 0 to 300VAC and it can be set individually for each phase. Users also can set the phase angle from 0? to 360?. These kinds of function make the 61700 series can simulate unbalance 3-phase power. Because of the wide output frequency from 15 to 1200Hz, it is suitable for avionics, marine and military application. The AC+DC mode extends the output function to simulate abnormal situation when power line contains DC offset.

The 61700 series uses the state-of-the-art PWM technology, so it is capable to generate very clean AC output with typical distortion less than 0.3%. With power factor correction circuit, the 61700 series yields higher efficiency and deliver more output power.

By using advanced DSP technology, the 61700 series offers precision and high speed measurements such as RMS voltage, RMS current, true power, power factor, and current crest factor, etc.

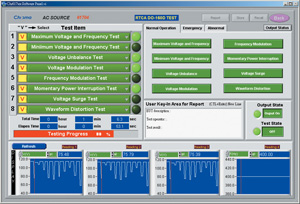

The 61700 series offers an optional function to output transient voltage. The function includes LIST, PULSE, STEP and INTERHARMONICS mode. Users can easily program variant waveform for immunity test. The 61700 series can also be controlled by a powerful and userfriendly softpanel through GPIB or RS-232 interface. Besides that, the softpanel includes a waveform editor that can edit up to 40th order harmonic components. By this way, the 61700 series get the ability to output distorted waveform as users like.

The self-diagnosis routine and protections against overpower, over current, over voltage, over temperature and fan fail, the 61700 series ensure the quality and reliability for even the most demanding engineering testing and production line application.
