  [н] Electrical Safety Analyzer

  𵨸 : 19032/19032-P

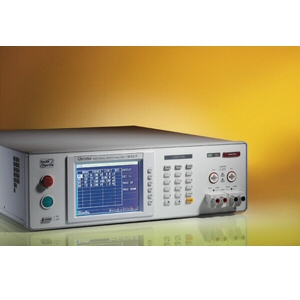

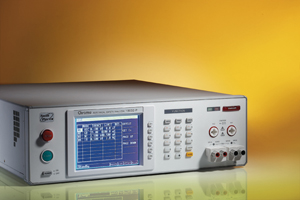

Model 19032/19032-P Electrical Safety Analyzer

Electrical Safety Analyzer



CE Mark TUV
Key Features


  • Floating Output Design meet EN50191 (19032-P)
  •
  • 500VA Power Rating (19032-P)
  •
  • Five instruments in one: AC Hipot, DC Hipot, Insulation Resistance, Ground Bond and Leakage Current (Option)
  •
  • Twin-PortTM function (Patent)
  •
  • Programmable output voltage to 5kV AC and 6kV DC
  •
  • Insulation resistance to 50G/1000V DC
  •
  • Ground bond up to 30A (Option up to 40A / 60A)
  •
  • Open/Short check(OSC)
  •
  • ARC detection (Flashover)
  •
  • Password Protected front panel lockout
  •
  • Storage of 50 Tests Setups with 100 Steps per setup
  •
  • Optional dynamic leakage current auto scanning (A190305/A190306/A190307/A190308)
  •
  • Standard RS-232 Interface
  •
  • Standard GB Offset KIT, SCANNER Interface
  •
  • Optional GPIB Interface
  •
  • Optional Bar-code Scanner
  •
  • Optional EST software for test programming, data mining, statistic
  •
  • UL, TuV ,CE mark (Model 19032)
  •
  • CE mark (Model 19032-P)
  •


A190308



  • Plug in to 19032 for Hipot, Line Leakage Auto Scan
  •
  • Five Different Kinds Human Body RC Network
  •
  • Four measurements mode : Normal, Reverse, Single Fault Normal, Single Fault Reverse
  •
  • Up to 20A Line Input Current Capability
  •
  • Build in A/D and Calibration Data Memory Easy to Install
  •
  • Multiple Display Mode Voltage-LC, Amp-LC, VA-LC
  •
  • Earth LC, Enclosure LC, Patient LC and Patient Auxiliary LC Test
  •



The 19032/19032-P are 5 in 1 Production Safety Analyzer. It can perform AC/DC Hipot, insulation resistance, grounding resistance and dynamic leakage current 5 safety test functions for electronic products. The dynamic leakage current scan device (A190305/A190307) can be connected externally or built in to 19032 Series. It is capable of measuring the complicate safety requirements with easy installation and operation, and is the finest auto safety tester to increase production test efficiency.

Model 19032/19032-P have Twin-PortTM and OSC function to minimize the test time greatly; along with the super large screen display and intelligent operation mode, 19032 is the most powerful single unit for auto safety tester.
