[레코더]

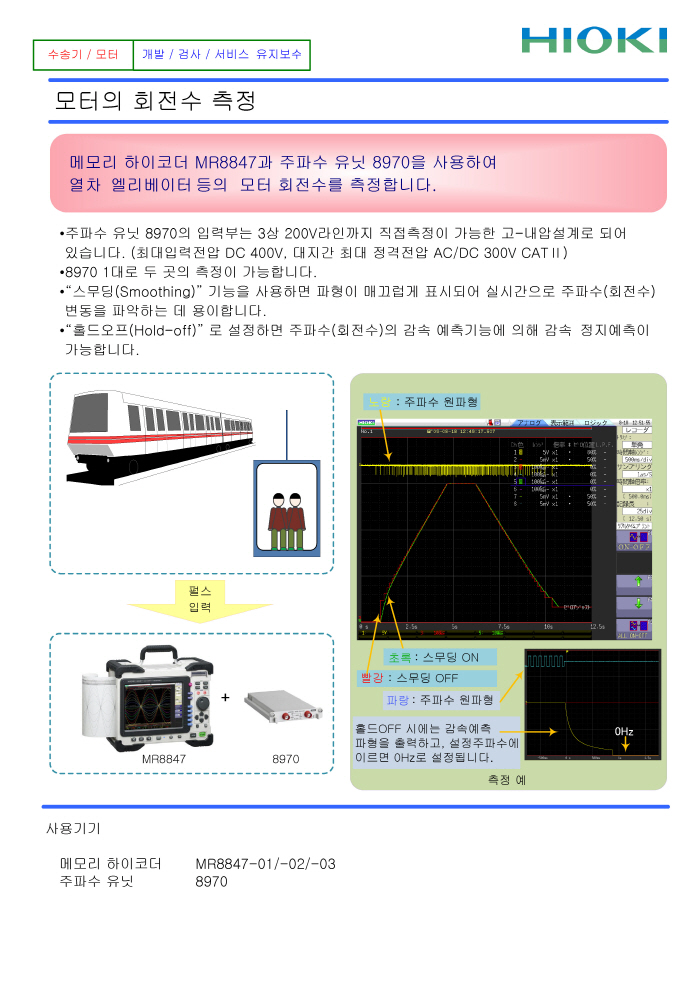

메모리 하이코더
모델명 :
MR8847 시리즈
|
|
· 탑재 메모리를 선택할 수있는 3 모델, 총 64MW (-01) ~ 512MW (-03)
· 고속 샘플링을 살린 파형 판정 기능을 새롭게 탑재
· 20MS / s의 고속 샘플링, ch 절연
· 아날로그 16ch + 로직 16ch 표준 ~ 아날로그 10ch + 로직 64ch
· 대형 손잡이 탑재로 기동성 발군
· 먼지가 들어가기 어려운 구조로 열악한 환경에 강한
· 기름때에 강한 대형 코팅 키 톱의
· 원터치 1 초에 종이 충전 빠르게 인쇄 50mm / s
Basic specifications
| Number of channels |
[8 analog input modules]: 16 analog channels + 16 logic channels (standard)
[5 analog input modules + 3 logic input modules]: 10 analog channels + 64 logic channels (standard 16 channels + 48 channels in logic input modules)
* For analog modules, channels are insulated vs. each other and vs. unit ground.
For logic modules and integrated standard logic channels, all channels use the unit ground. |
Measurement ranges
(20 div full-scale) |
5mV to 20V/div, 12ranges, resolution : 1/100 of range (using the 8966)
5mV to 20V/div, 12ranges, resolution : 1/1600 of range (using the 8968) |
| Max. allowable input |
400 V DC (using the 8966/8968) |
| Frequency characteristics |
DC to 5 MHz (-3dB, using the 8966), DC to 100 kHz (-3dB, using the 8968) |
Time axis
(MEMORY) |
5μs to 5min/div, 26ranges,at 100 points/div resolution, three steps of time-axis magnification from 2× to 10×, and 13 steps of time-axis compression from 1/2× to 1/20,000×. |
| Measurement functions |
MEMORY (high-speed recording), RECORDER (real-time recording),
X-Y RECORDER (X-Y real-time recording), FFT |
| Other functions |
Waveform judgment (at Memory, X-Y recorder, or FFT function) |
| Memory capacity |
| MR8847-01: |
32M-Words/ch (using 2 Analog channels) to 4M-Words/ch (using 16 Analog channels), Total capacity 64MW memory |
| MR8847-02: |
128M-Words/ch (using 2 Analog channels) to 16M-Words/ch (using 16 Analog channels), Total capacity 256MW memory |
| MR8847-03: |
256M-Words/ch (using 2 Analog channels) to 32M-Words/ch (using 16 Analog channels), Total capacity 512MW memory | |
| Data storage media |
USB memory, CF Card slot × 1 (Up to 2 GB), Hard disk drive (option, 80GB) |
| Printing |
216mm (8.50in) × 30m (98.43ft), thermal paper roll, Recording speed : Max. 50mm (1.97in)/sec |
| Display |
10.4 inch TFT color LCD (SVGA, 800×600 dots) |
| Displayable languages |
English, Japanese, Korean, Chinese |
| External interfaces |
[LAN]: 100BASE-TX; Functions: DHCP, DNS supported, FTP server, HTTP server
[USB]: USB2.0 compliant, series A receptacle 1 port, series B receptacle 1 port (file transfer to PC, remort control from PC) |
| Power supply |
100 to 240V AC, 50/60Hz (130VA max., when using printer: 220VA max.)
10 to 28V DC (when using the optional factory-installed DC POWER UNIT 9784) |
| Dimensions, mass |
351mm (13.82in) W × 261mm (10.28in) H × 140mm (5.51in) D, 7.6kg (268.1oz) (main unit only) |
| Supplied accessories |
Instruction Manual×1, Measurement Guide×1, Application Disk (Wave Viewer Wv, Communication Commands table)×1, Power cord×1, Input cord label×1, USB cable×1, Printer paper×1, Roll paper attachment×2 | |
|
|
