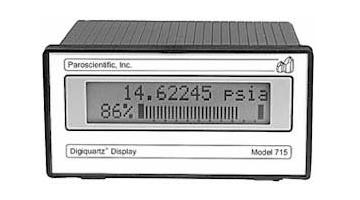

The Model 715 displays pressure and temperature data from all Paroscientific Intelligent Transmitters that have Dual RS-232 and RS-485 interfaces. The two line, 16 character, alphanumeric, backlit, liquid crystal display is set up with transmitter commands and included software. Display functions include pressure and temperature values with engineering units, overpressure warning, tare indicator, user defined text messages, and a horizontal analog bar graph showing percentage of full-scale pressure.

The Model 715 will respond to display commands from the Transmitter, a computer, or other serial host on either the RS-232 or RS-485 port. For stand-alone operation, it can display data whenever power is applied to the transmitter.

Set-up and data acquisition software are included at no extra charg.

The Model 715 digital display can receive and display data from a Paroscientific pressure transmitter via either the RS-232 or RS-485 interface.

Features of the new display include:

• 2 line, 16 character backlit alphanumeric LCD display
• Engineering units displayed along with pressure values
• Tare indication
• Ability to display user-defined alphanumeric information
• Update enunciator indicates when pressure value has been updated
• Provides 7 VDC regulated power to Intelligent transmitter
• Pressure can be displayed as a percent of full scale with a horizontal bar graph
• Overpressure warning display
• Can be panel mounted or used as a desk top display
• Full “plug and play” interface with all Paroscientific transmitters equipped with the new RS-232/485 electronics
• Can accept power from AC adaptor or rear panel mounted terminal block
• CE approved
